Q1: What is a 10G Tunable DWDM 80km transceiver?

A 10G Tunable DWDM 80km transceiver is an SFP+ optical module that supports software-selectable DWDM wavelengths. One module can replace multiple fixed-wavelength modules, simplifying inventory while enabling long-distance DWDM transmission.

Key features include:

• 10Gbps transmission

• Tunable C-Band wavelengths

• Up to 80km over SMF

• SFP+ hot-pluggable form factor

• Duplex LC interface

It is ideal for 5G fronthaul, metro networks, and carrier DWDM systems.

Q2: How does a 10G Tunable DWDM transceiver work?

The module uses a tunable laser that can be configured to different DWDM channels through software. When used with a DWDM MUX/DEMUX, multiple wavelengths share a single fiber, increasing bandwidth while reducing spare inventory.

Q3: What are the key features of the C-LIGHT 10G Tunable DWDM 80km transceiver?

The C-LIGHT tunable module is designed for flexible long-distance optical transmission.

Key features include:

• Up to 96 tunable C-Band channels

• Up to 80km transmission

• EML transmitter with APD receiver

• Automatic wavelength tuning

• Power consumption below 2W

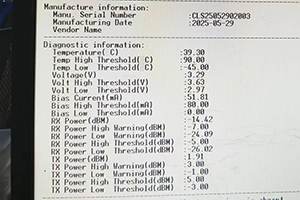

• Digital Diagnostic Monitoring (DDM)

These features provide reliable performance and simplify network deployment.

Q4: What are the advantages of a Tunable DWDM transceiver?

Compared with fixed-wavelength DWDM modules, a tunable transceiver offers:

• Reduced spare inventory

• Simplified network maintenance

• Flexible wavelength assignment

• Lower operating costs

• Faster deployment

It is an efficient solution for large-scale DWDM networks.

Q5: Where are 10G Tunable DWDM transceivers commonly used?

These modules are widely deployed in long-distance optical networks.

Typical applications include:

• 5G fronthaul

• Metro Ethernet

• DWDM transport networks

• Enterprise backbone networks

• Carrier optical networks

• Data Center Interconnect (DCI)

These applications benefit from flexible wavelength management and efficient fiber utilization.

Q6: Why choose a Tunable DWDM transceiver instead of a fixed DWDM module?

A tunable module can operate on multiple DWDM channels, eliminating the need to stock numerous fixed-wavelength modules.

Its advantages include:

• Lower inventory costs

• Easier network expansion

• Simplified maintenance

• Flexible provisioning

• Better operational efficiency

It is ideal for operators and large enterprise optical networks.

Q7: How do you choose the right 10G Tunable DWDM transceiver?

When selecting a tunable DWDM module, consider:

• Required transmission distance

• Supported wavelength range

• Optical power budget

• MUX/DEMUX compatibility

• Power consumption

• Equipment compatibility

Choosing the right module ensures reliable DWDM transmission and easier network management.

Q8: Why choose the C-LIGHT 10G Tunable DWDM 80km transceiver?

The C-LIGHT 10G Tunable DWDM transceiver combines flexible wavelength tuning, long-distance performance, and low power consumption in a compact SFP+ package.

It provides:

• Up to 96 tunable DWDM channels

• Up to 80km transmission

• Software-configurable wavelengths

• Low power consumption

• Excellent platform compatibility

It is an ideal solution for 5G fronthaul, metro networks, carrier transport, and DWDM optical infrastructure.
