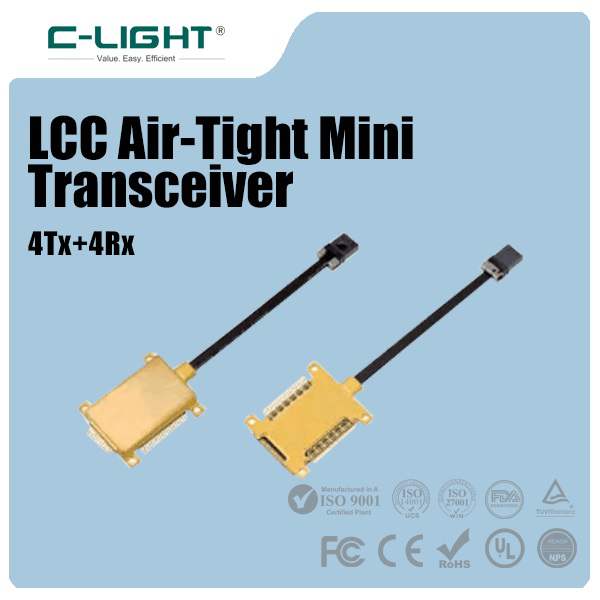

The LCC Air-Tight Mini Transceiver is a miniature optical transceiver module featuring a hermetic LCC (Leadless Ceramic Chip Carrier) package with a 4Tx+4Rx configuration. It operates at 3.3V and supports multi-rate data transmission from 1Gbps to 10.3125Gbps with wide case temperature options. Measuring only 16.4mm x 16.4mm x 4mm, the air-tight package provides high integration, strong environmental resistance, and reliable optical I/O performance for demanding system applications.
The air-tight LCC package provides enhanced environmental protection and high reliability for optical I/O applications requiring a sealed module structure.
The module measures only 16.4mm x 16.4mm x 4mm, providing a compact form factor for high-density board-level optical integration.
Four transmit and four receive channels provide parallel bidirectional optical communication for high-speed I/O systems.
The module supports data rates from 1Gbps to 10.3125Gbps for flexible high-speed optical interconnect applications.
The 12-channel MT connector provides high-density fiber connectivity with customizable pigtail lengths for system integration.
Optional 850nm multimode lasers and receivers support short-distance transmission over multimode fiber up to 100m.
LCC Air-Tight Mini, 32/36/48/64pin options
16.4mm x 16.4mm x 4mm
4Tx+4Rx
1Gbps to 10.3125Gbps per channel, multi-rate
3.3V
12-channel MT connector with customizable pigtail length
850nm
Multimode fiber (MMF)
Up to 100m over MMF
-55°C to 85°C, -40°C to 85°C, or 0°C to 70°C
The 4Tx+4Rx architecture provides four independent transmit channels and four receive channels for simultaneous bidirectional optical communication.
The hermetic LCC package is designed to provide strong environmental isolation and support reliable operation in demanding system conditions.
The 12-channel MT interface consolidates multiple optical paths into a compact connection for efficient system integration.
The LCC mini platform is available in 32-pin, 36-pin, 48-pin, and 64-pin options, allowing the package to be matched to different system designs.
The hermetic package is suitable for optical systems where environmental protection and reliable board-level integration are important.
The compact 4Tx+4Rx architecture provides parallel optical connectivity between processing, networking, and system components.
The small LCC form factor supports optical I/O integration in equipment with limited board and installation space.
The optional 850nm multimode configuration supports optical transmission up to 100m over MMF for short-distance system connections.
The LCC Air-Tight Mini Transceiver combines a hermetic LCC package, compact 16.4mm x 16.4mm x 4mm dimensions, 4Tx+4Rx parallel optical I/O, and multi-rate operation up to 10.3125Gbps per channel. Its 12-channel MT interface, customizable pigtail, and optional 850nm MMF optics provide a flexible solution for high-density optical systems requiring compact size and enhanced environmental protection.
The module uses a 4Tx+4Rx configuration with four transmit channels and four receive channels.
It uses a hermetic LCC package designed to provide enhanced environmental protection and high reliability in demanding applications.
The air-tight LCC mini package measures 16.4mm x 16.4mm x 4mm.
The transceiver supports multi-rate operation from 1Gbps to 10.3125Gbps per channel.
The module uses a 12-channel MT connector with customizable pigtail length and supports up to 100m over MMF with optional 850nm multimode optics.
Designed for high-reliability optical I/O, the LCC Air-Tight Mini Transceiver combines a hermetic 16.4mm x 16.4mm x 4mm LCC package, 4Tx+4Rx parallel channels, multi-rate operation up to 10.3125Gbps, and 12-channel MT connectivity for compact high-density optical systems.
