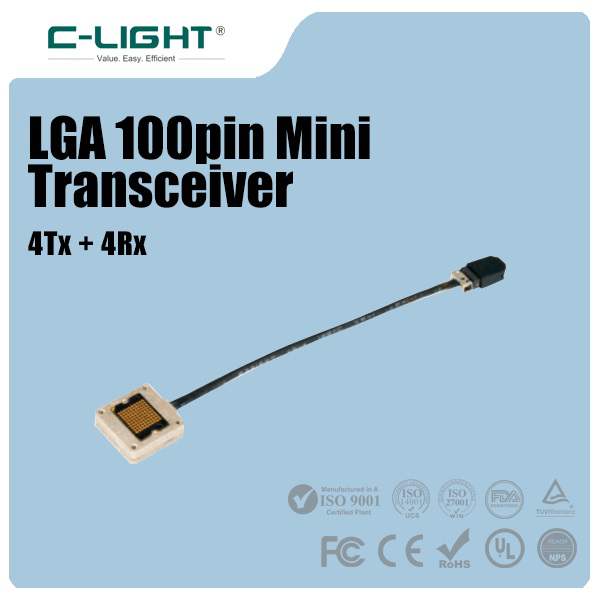

The LGA 100pin Mini Transceiver is a compact optical transceiver module integrating four transmit channels and four receive channels in a high-density 100-pin LGA package. It supports multi-rate data transmission from 1Gbps to 25.78125Gbps per channel, 3.3V operation, and wide temperature ranges for demanding system environments. With a 12-channel MT connector, optional 850nm multimode optics, and up to 100m transmission over MMF, it provides a compact solution for high-speed I/O data interconnects.
The module integrates four transmit channels and four receive channels for simultaneous bidirectional parallel optical data transmission.
Each channel supports data rates from 1Gbps to 25.78125Gbps, providing flexible connectivity for high-speed optical I/O systems.
The miniaturized 100-pin LGA package provides high integration and efficient board-level implementation for space-constrained equipment.
The 12-channel MT connector provides high-density multi-fiber connectivity with customizable pigtail lengths for different system designs.
Optional 850nm multimode lasers and receivers support short-distance optical transmission over multimode fiber up to 100m.
Available case temperature ranges include -55°C to 85°C, -40°C to 85°C, and 0°C to 70°C for different operating environments.
LGA 100pin Mini
4Tx+4Rx
1Gbps to 25.78125Gbps per channel, multi-rate
3.3V
850nm
12-channel MT connector with customizable pigtail length
Multimode fiber (MMF)
Up to 100m over MMF
-55°C to 85°C, -40°C to 85°C, or 0°C to 70°C
The 4Tx architecture provides four independent optical transmit channels for parallel high-speed data transmission.
The 4Rx architecture provides four independent optical receive channels for simultaneous parallel data reception.
The combined 4Tx+4Rx configuration supports bidirectional optical communication within a compact integrated module.
The 12-channel MT interface consolidates multiple optical fibers into a compact connection for high-density system integration.
Provides high-density parallel optical connectivity for short-reach connections between data center equipment and system boards.
The 4Tx+4Rx architecture supports high-throughput optical communication between computing, processing, and networking systems.
Designed for equipment requiring multiple transmit and receive channels within a compact high-speed optical I/O architecture.
The LGA mini package and MT interface provide an efficient solution for equipment where board space and fiber density are important design considerations.
The LGA 100pin Mini Transceiver combines 4Tx+4Rx parallel optical transmission, data rates up to 25.78125Gbps per channel, a compact 100-pin LGA package, and 12-channel MT connectivity. Its optional 850nm multimode optics and 100m MMF reach make it a practical solution for high-speed short-reach optical I/O applications requiring high integration and efficient fiber connectivity.
The module uses a 4Tx+4Rx configuration with four transmit channels and four receive channels.
Each channel supports multi-rate operation from 1Gbps to 25.78125Gbps.
The transceiver uses a 12-channel MT connector with customizable pigtail length.
The available optical configuration uses 850nm multimode lasers and receivers for short-distance MMF applications.
The 850nm multimode configuration supports transmission distances of up to 100m over multimode fiber.
Designed for high-speed optical I/O, the LGA 100pin Mini Transceiver combines 4Tx+4Rx parallel channels, up to 25.78125Gbps per channel, 12-channel MT connectivity, and compact LGA integration for short-reach multimode fiber applications.
