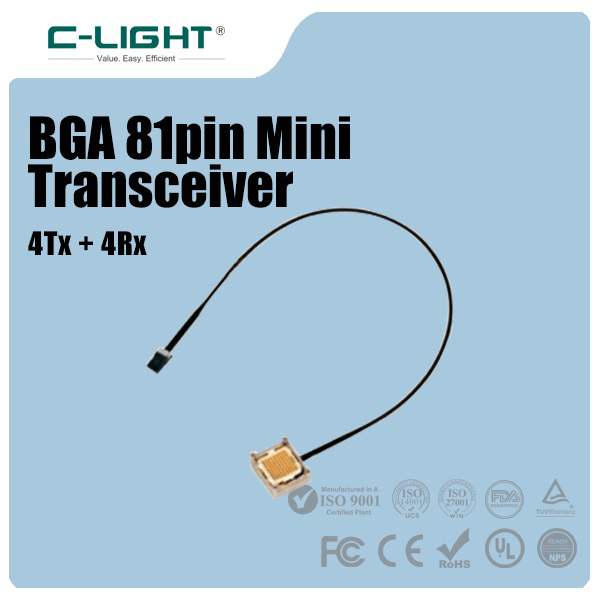

The BGA 81pin Mini 4Tx+4Rx Transceiver is a compact parallel optical transceiver module integrating four transmit channels and four receive channels in an 81-pin BGA package. It supports multi-rate operation from 1Gbps to 10.3125Gbps, 3.3V operation, and a wide case temperature range of -55°C to 85°C. With a 12-channel MT/MPO interface and optional 850nm multimode optics for up to 100m over MMF, it provides a high-density solution for bidirectional high-speed I/O data transmission.
Integrates four transmit channels and four receive channels for simultaneous bidirectional parallel optical data communication.
Each channel supports data rates from 1Gbps to 10.3125Gbps, providing flexible compatibility with high-speed I/O systems.
The miniaturized 81-pin BGA package provides high integration and reliable soldering characteristics for compact optical system designs.
The high-density MT or MPO interface supports multi-fiber connectivity with customizable pigtail lengths for different system configurations.
Optional 850nm multimode lasers and receivers support short-distance transmission over multimode fiber up to 100m.
The module supports case operating temperature options of -55°C to 85°C, -40°C to 85°C, and 0°C to 70°C.
BGA 81pin Mini
4Tx+4Rx
1Gbps to 10.3125Gbps per channel, multi-rate
3.3V
850nm
12-channel MT/MPO connector with customizable pigtail length
Multimode fiber (MMF)
Up to 100m over MMF
-55°C to 85°C, -40°C to 85°C, or 0°C to 70°C
The 4Tx+4Rx architecture provides four dedicated transmit and four dedicated receive channels for parallel bidirectional data communication.
The 12-channel MT/MPO interface consolidates multiple fiber connections into a compact interface for high-density equipment integration.
The optional 850nm multimode optical configuration supports transmission distances of up to 100m for short-reach high-speed links.
The compact BGA package and parallel channel architecture make the module suitable for integrated optical I/O designs requiring both transmit and receive functions.
Provides compact bidirectional parallel optical connectivity for high-density connections between data center equipment.
The 4Tx+4Rx architecture supports high-throughput optical communication between computing, networking, and processing systems.
Designed for equipment requiring multiple optical transmit and receive channels within a compact system architecture.
The BGA mini package provides an efficient board-level optical solution where space and fiber density are important design considerations.
The BGA 81pin Mini 4Tx+4Rx Transceiver combines eight parallel optical channels, bidirectional transmission, multi-rate operation up to 10.3125Gbps per channel, and a compact BGA package. Its 12-channel MT/MPO interface and optional 850nm MMF optics provide a practical solution for high-density short-reach optical I/O applications where compact integration and reliable bidirectional data transmission are required.
The module integrates four transmit channels and four receive channels for bidirectional parallel optical communication.
Each channel supports multi-rate operation from 1Gbps to 10.3125Gbps.
The module uses a 12-channel MT or MPO connector, with pigtail length customizable according to system requirements.
The available optical configuration uses 850nm multimode lasers and receivers for short-distance MMF applications.
The 850nm multimode configuration supports transmission distances of up to 100m over multimode fiber.
Designed for high-density bidirectional optical I/O, the BGA 81pin Mini 4Tx+4Rx Transceiver combines four transmit channels, four receive channels, multi-rate operation, 12-channel MT/MPO connectivity, and optional 850nm MMF optics in a compact BGA package.
