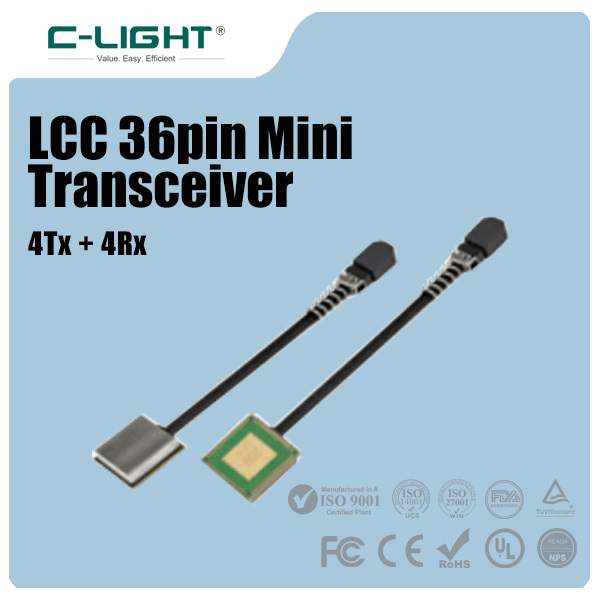

LCC36 pin Mini Transceiver is a high-density parallel miniature optical transceiver module in a 36-pin LCC (Leadless Chip Carrier) package, configured with 4 transmit channels (4Tx) and 4 receive channels (4Rx).

LCC36 pin Mini Transceiver module operates at 3.3V and features a wide operating temperature range from -55℃ to 85℃, ensuring stable performance in demanding environments. It supports data transmission rates from 1 Gbps to 10.3125 Gbps.

LCC36 pin Mini Transceiver module utilizes a compact 36-pin LCC mini package with a high level of integration. It is equipped with a 12-channel MT connector and supports customizable pigtail lengths, providing flexibility for system integration. Designed for high-speed parallel I/O data communication, this module offers an optional 850nm multimode laser and receiver, making it suitable for short-distance transmission over multimode fiber (MMF) with a typical transmission distance of 100 meters.

●3.3V working volt

●Wide case working temperature range -55℃~ 85℃

●Speed range 1Gbps ~ 10.3125Gbps

●LCC 36pin mini form

●12Ch MT connector, pigtail length customized

●High speed I/O Data

●Multi-Mode laser& receiver 850nm optional for short distance MMF 100m application
