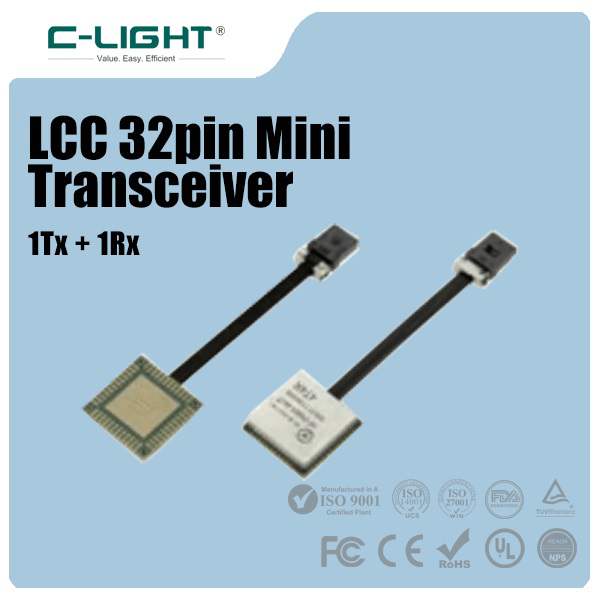

The LCC 32pin Mini Transceiver is a miniature optical transceiver module using a 32-pin LCC (Leadless Chip Carrier) package with a 1Tx+1Rx configuration for point-to-point high-speed optical connections. It operates at 3.3V and supports multi-rate data transmission from 1Gbps to 10.3125Gbps. With a 12-channel MT connector, customizable pigtail length, and optional 850nm multimode optics supporting up to 100m over MMF, it provides a compact solution for high-speed optical I/O applications.
The module integrates one optical transmit channel and one optical receive channel for bidirectional point-to-point optical communication.
The transceiver supports data rates from 1Gbps to 10.3125Gbps for flexible high-speed optical I/O applications.
The miniature 32-pin LCC package provides a compact board-level optical interface for systems with limited installation space.
The 12-channel MT connector provides a high-density fiber interface with customizable pigtail lengths for system integration.
Optional 850nm multimode lasers and receivers support short-distance transmission over multimode fiber up to 100m.
Available case operating temperature ranges include -55°C to 85°C, -40°C to 85°C, and 0°C to 70°C for different system environments.
LCC 32pin Mini
1Tx+1Rx
1Gbps to 10.3125Gbps, multi-rate
3.3V
850nm
12-channel MT connector with customizable pigtail length
Multimode fiber (MMF)
Up to 100m over MMF
-55°C to 85°C, -40°C to 85°C, or 0°C to 70°C
The 1Tx channel provides a dedicated optical path for high-speed data transmission from the host system.
The 1Rx channel provides a dedicated optical path for receiving high-speed optical data.
The 1Tx+1Rx architecture supports straightforward bidirectional point-to-point optical communication in a compact module.
The 12-channel MT interface provides a compact fiber connection while allowing pigtail length customization for different system layouts.
Provides compact optical connectivity for equipment requiring a dedicated transmit and receive optical interface.
The 1Tx+1Rx configuration is suitable for direct bidirectional optical connections between system components.
Supports short-reach optical interconnects between boards, processing systems, and networking equipment.
The optional 850nm multimode configuration supports transmission up to 100m over MMF for compact system interconnects.
The LCC 32pin Mini Transceiver combines a compact 32-pin LCC package, 1Tx+1Rx optical architecture, multi-rate operation up to 10.3125Gbps, and a 12-channel MT interface. Its small form factor and optional 850nm MMF optics provide a practical solution for point-to-point high-speed optical I/O where board space and fiber connectivity density are important.
The module uses a 1Tx+1Rx configuration with one transmit channel and one receive channel.
The transceiver supports multi-rate operation from 1Gbps to 10.3125Gbps.
The transceiver uses a 12-channel MT connector with customizable pigtail length.
The available optical configuration uses 850nm multimode lasers and receivers for short-distance MMF applications.
The 850nm multimode configuration supports transmission distances of up to 100m over multimode fiber.
Designed for compact high-speed optical I/O, the LCC 32pin Mini Transceiver combines 1Tx+1Rx bidirectional optical communication, multi-rate operation up to 10.3125Gbps, 12-channel MT connectivity, and 850nm MMF transmission up to 100m.
