This product is a portable/ video microscope to inspect all kinds of fiber optic terminations/especially for the female ones.It eliminates the need to access the backside of patch panels or disassemble hardware devices prior to inspection.
Feature
• Convenient using both for male and female adapters;
• Widely used in DWDM/SDH/SONET etc;
• Available for USB 2.0 interface on PC and data saving
• Analysis system software

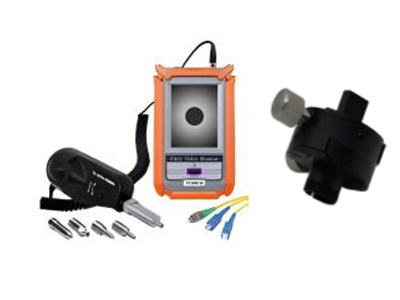

| FVM-100 4-Pin Regular Inspection Probe | FVM-103 MPO/MTP 4-Pin Inspection Probe |
|
|
Type | FVM-100 | FVM-103 |
Magnification | 200x or 400x | |
Resolution Ratio | 0.75 μm | |
Analysis System | N/A | |
Display Supply | 3.5”TFT-LCD/ 960x240 pixels | 3.5”TFT-LCD/ 960x240 pixels |
Power Supply | 12.6V Li battery | |
Weight（kg) | Probe(0.14); Monitor(0.4) | Probe(0.14) Monitor(0.4) |
Dimensions(cm) | Probe(22*3*3) Monitor(17*10*4.5) | |
Work/Storage | -20℃~+50℃ -30℃~+60℃ | |
Standard Accessories
Optional Accessories
Tips type | Function Description |
Standard Accessories | |
125-U-M | LC/MU patch cord UPC termination |
25-U-M | FC/SC/ST/E2000 patch cord UPC termination |
FC-PC-F | FC UPC bulkhead |
SC-PC-F | SC UPC bulkhead |
LC-U-F | LC/MU UPC bulkhead |

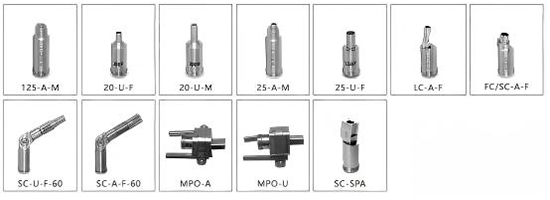

Optional Accessories | |
125-A-M | LC/MU patch cord APC termination |
25-A-M | FC/SC/ST/E2000 patch cord APC termination |
20-U-F | SMPTE/LEMO UPC bulkhead |
20-U-M | SMPTE/LEMO patch cord APC termination |
25-U-F | FC/SC UPC bulkhead |
FC/SC-A-F | FC/SC APC bulkhead |
LC-A-F | LC APC bulkhead |
SC-U-F-60 | Bend tip for SC UPC bulkhead |
SC-A-F-60 | Bend tip for SC APC bulkhead |
MPO-A | MTP/MPO APC bulkhead |
MPO-U | MTP/MPO UPC bulkhead |
SC-SPA | SC UPC bulkhead |
FVM-100 Ordering Information
FVM-100 Inspection Probe x1 |  | |
3.5” monitor x1 | ||
25-U-M x1 | ||
Standard | 125-U-M x1 | |
Accessories | FC-PC-F x1 | |
SC-PC-F x1 | ||
LC-U-F x1 | ||
Recharger; Manual | ||
Hard Carrying bag;Li Battery | ||
Optional | 25-A-M;125-A-M;SC-A-F; | |
Accessories | FC-A-F;LC-A-F | |
AV-USB 2.0 Converter |
