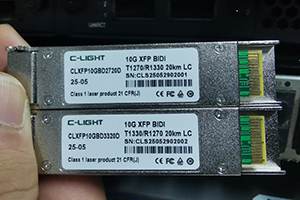

Q1: What is a 10G XFP Single Fiber BiDi 20km transceiver?

A 10G XFP Single Fiber BiDi 20km transceiver is a hot-pluggable XFP optical module that delivers 10Gbps bidirectional communication over a single strand of single-mode fiber. It uses two different wavelengths to maximize fiber utilization while supporting transmission up to 20km.

Key features include:

• 10Gbps data rate

• 1270nm/1330nm BiDi transmission

• Up to 20km over SMF

• Simplex LC connector

• XFP hot-pluggable form factor

It is ideal for enterprise networks, telecom infrastructure, and data center interconnects.

Q2: How does a 10G XFP BiDi transceiver work?

The module uses WDM technology to transmit and receive optical signals on different wavelengths through a single fiber. One module transmits at 1270nm and receives at 1330nm, while the paired module operates in reverse, enabling simultaneous bidirectional communication.

Q3: What are the key features of the C-LIGHT 10G XFP BiDi 20km transceiver?

The C-LIGHT 10G XFP BiDi module is designed for reliable long-distance optical transmission.

Key features include:

• 9.95–11.1Gbps data rate

• Up to 20km transmission

• 1270nm/1330nm wavelength pair

• DFB BOSA transmitter

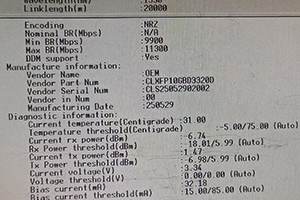

• Digital Diagnostic Monitoring (DDM)

• Power consumption ≤1.5W

These features ensure stable and efficient 10G optical connectivity.

Q4: What are the advantages of a 10G XFP BiDi transceiver?

Compared with traditional duplex XFP modules, a BiDi transceiver offers:

• Single-fiber transmission

• Higher fiber utilization

• Lower cabling costs

• Simplified deployment

• Reliable 10G performance

It is an efficient solution where fiber resources are limited.

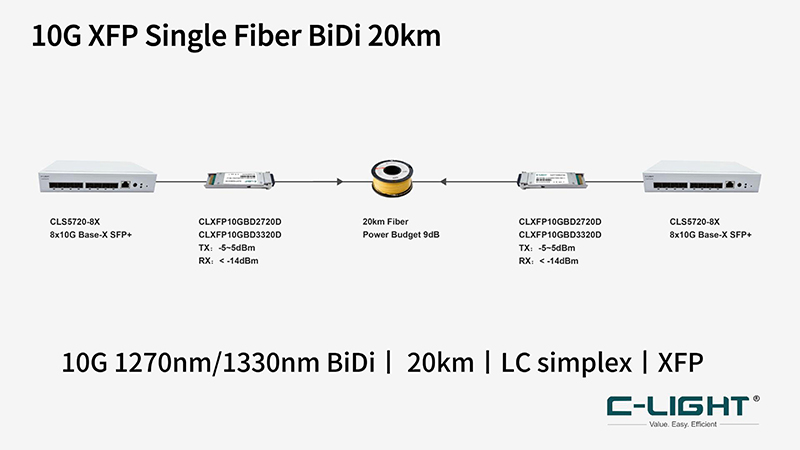

Q5: Where are 10G XFP BiDi 20km transceivers commonly used?

These modules are widely deployed in medium-distance optical networks.

Typical applications include:

• Telecom networks

• Enterprise backbone networks

• Data Center Interconnect (DCI)

• OEO transmission systems

• Fiber media converters

• Video surveillance networks

These applications benefit from reliable single-fiber transmission and reduced infrastructure costs.

Q6: Why choose a 10G XFP BiDi instead of a duplex XFP?

A BiDi XFP module enables bidirectional communication over a single fiber, reducing fiber requirements while maintaining full 10Gbps performance.

Its advantages include:

• Saves fiber resources

• Lower deployment costs

• Easier installation

• Simplified network expansion

• Excellent compatibility

It is ideal for carrier and enterprise optical networks.

Q7: How do you choose the right 10G XFP BiDi transceiver?

When selecting a 10G XFP BiDi module, consider:

• Transmission distance

• Wavelength pair

• Fiber type

• Connector type

• XFP compatibility

• Operating temperature

Choosing the correct module ensures stable and reliable optical transmission.

Q8: Why choose the C-LIGHT 10G XFP BiDi 20km transceiver?

The C-LIGHT 10G XFP BiDi combines reliable single-fiber transmission, low power consumption, and broad compatibility in a standard XFP package.

It provides:

• 10Gbps transmission

• Up to 20km over SMF

• Single-fiber BiDi technology

• DDM monitoring

• Excellent platform compatibility

It is an ideal solution for telecom networks, enterprise backbones, data centers, and OEO transmission systems.
